300kg Automatic Welding Positioner, Chuck Rotary Welding Turning Table for Pipe Tank Welding
Product Overview

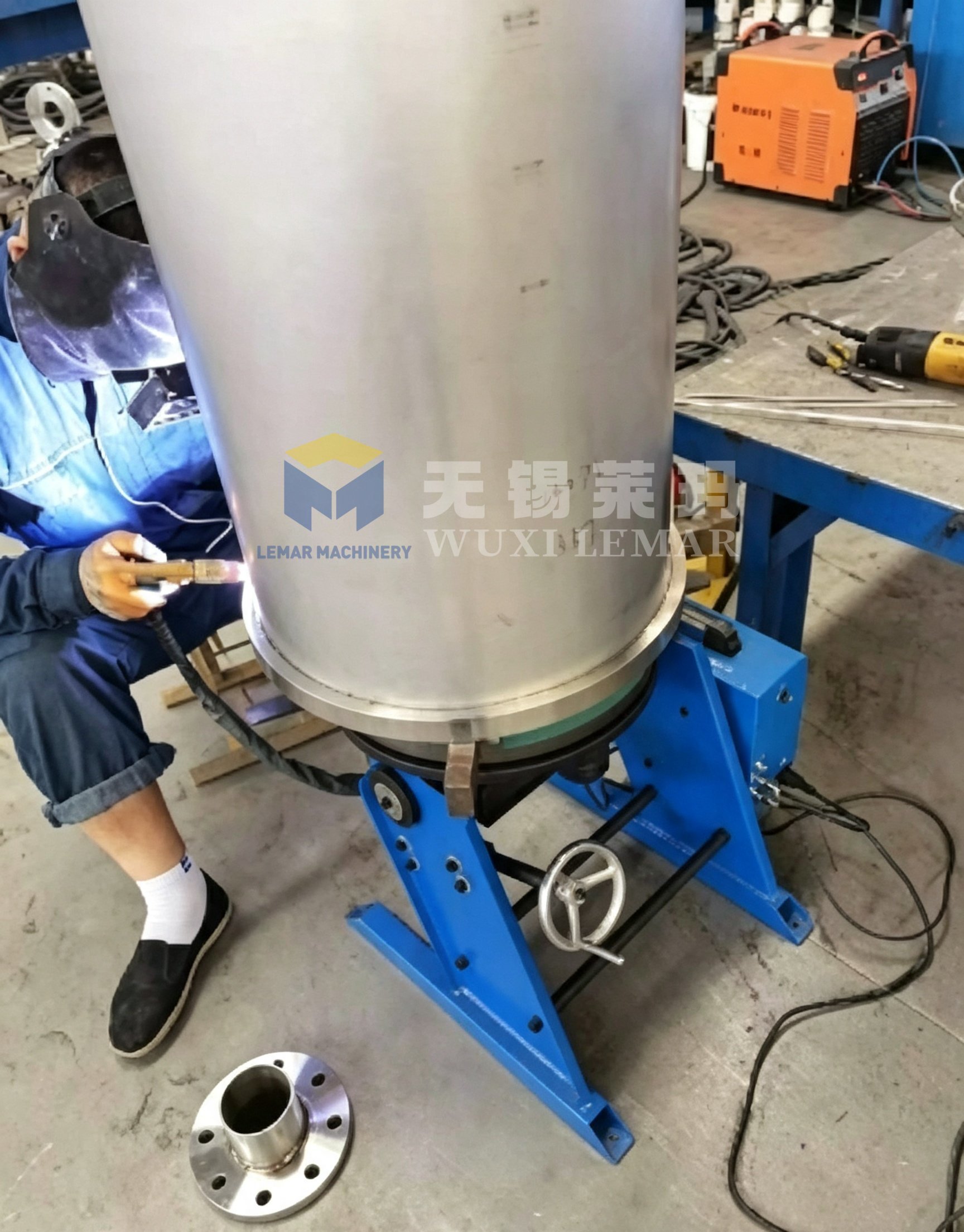

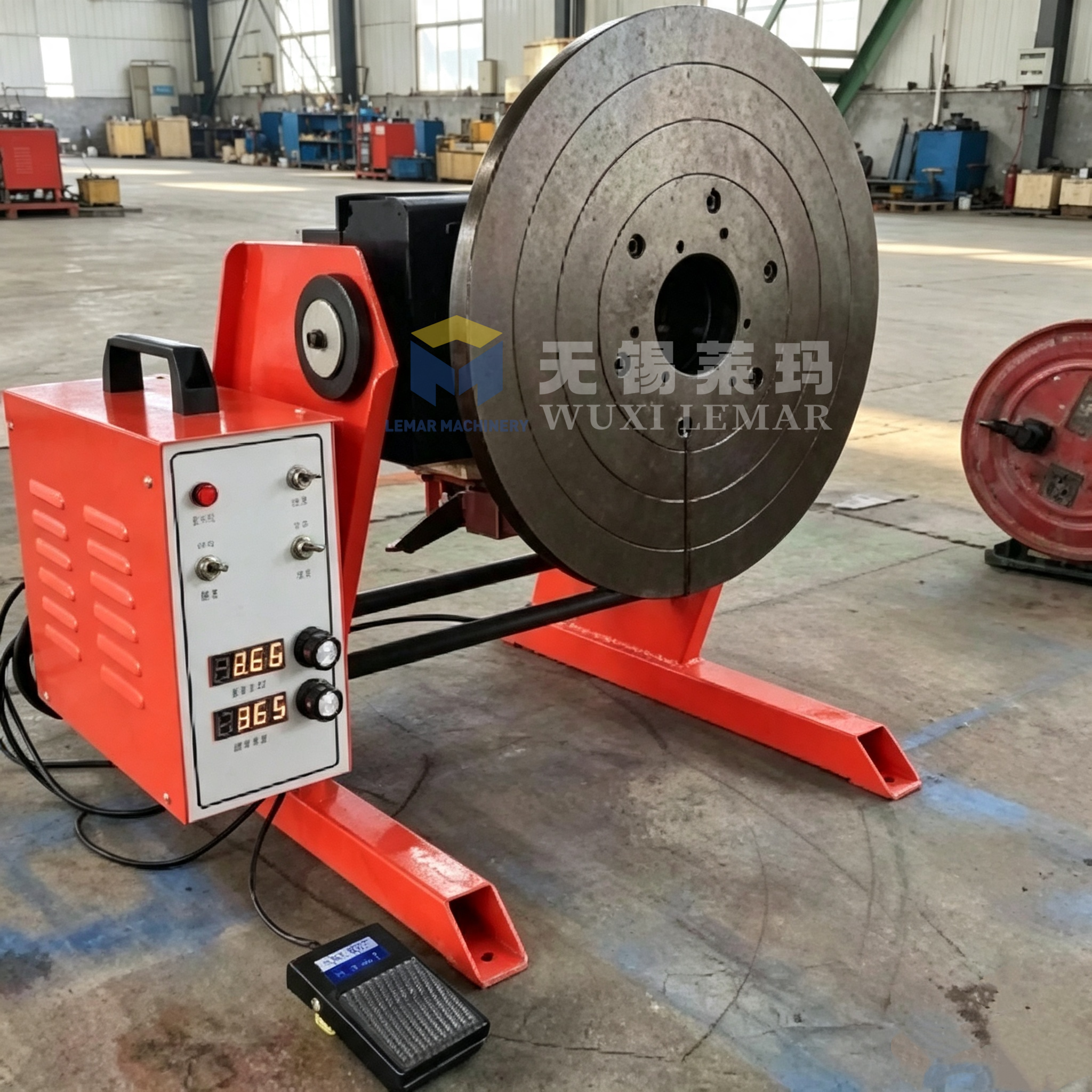

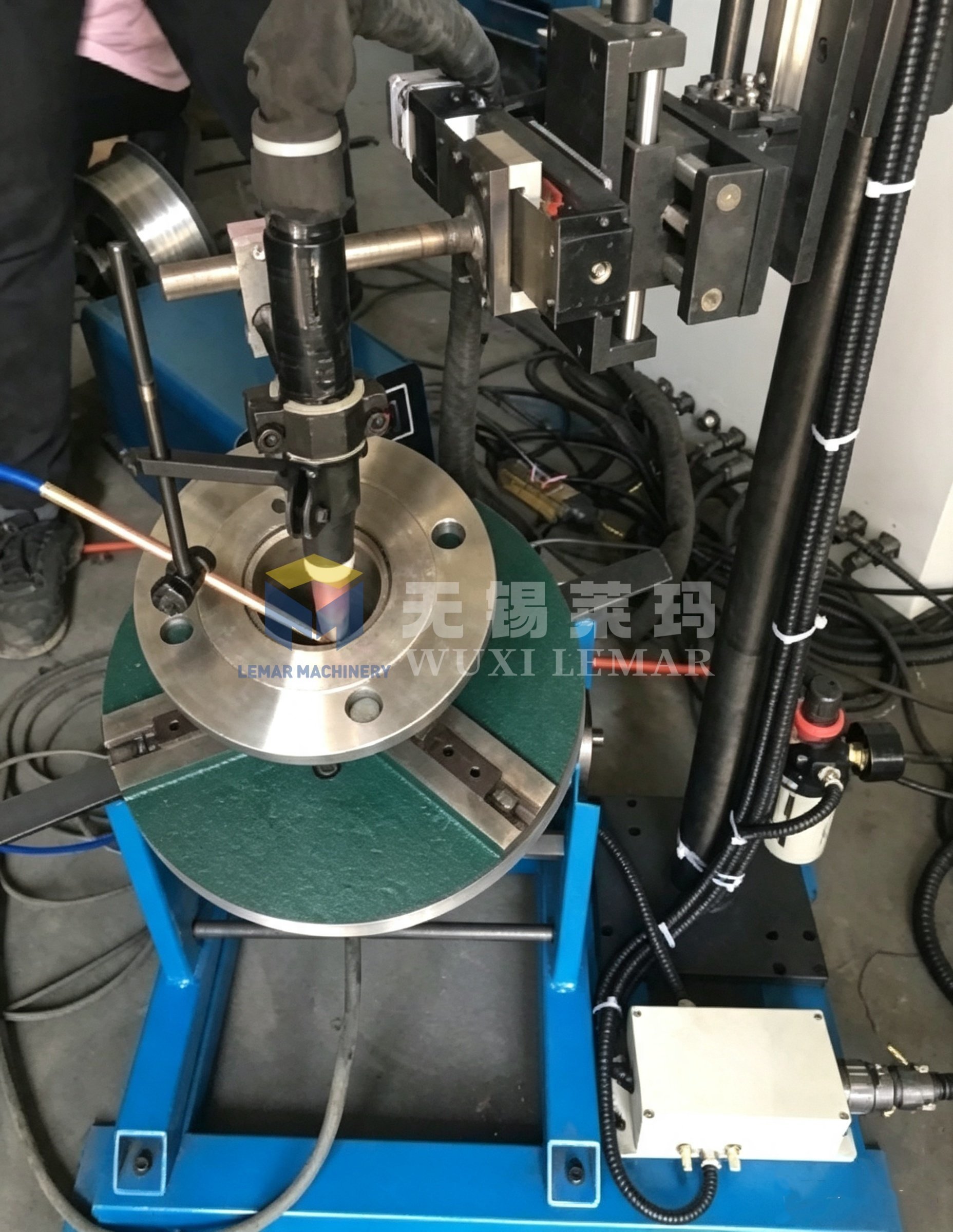

The 300kg welding positioner is a small to medium-sized rotary welding auxiliary equipment. It firmly clamps workpieces using a four-jaw chuck, enabling 360° rotation and tilting adjustment to maintain welding seams in the flat welding position. This significantly reduces welding difficulty while improving welding quality and working efficiency. Ideal for circumferential welding of small tanks, pipelines, flanges, elbows, hydraulic cylinder heads, and other circular parts.
Frequently Asked Questions
What is the maximum tilting angle of this 300kg welding positioner?
The tilting angle can be adjusted freely from 0° to 90°, which easily positions weld beads in the flat welding position.
Can I change the chuck type or install a customized fixture plate instead?
Yes. We support replacing the standard 4-jaw self-centering chuck with a flat fixture plate, three-jaw chuck, or customized clamping tooling as required.
Is the rotating speed adjustable?
It features VFD stepless speed regulation with rotation speed ranging from 0.2rpm to 2rpm for stable and smooth operation.
Can the machine work for stainless steel, carbon steel and alloy steel welding?
The positioner adapts to all common metal welding workpieces, serving as rotating support that pairs with your welding power source.
Can you adjust the working voltage for overseas markets?
Custom voltage is available, including 220V, 380V, 415V, 50Hz/60Hz for Southeast Asia, Russia, Middle East, and Latin America markets.
What optional accessories can be added?
Optional accessories include foot switches for pedal operation, cold-resistant electrical components for low-temperature areas, larger size chucks, and linkage functions with welding machines.
